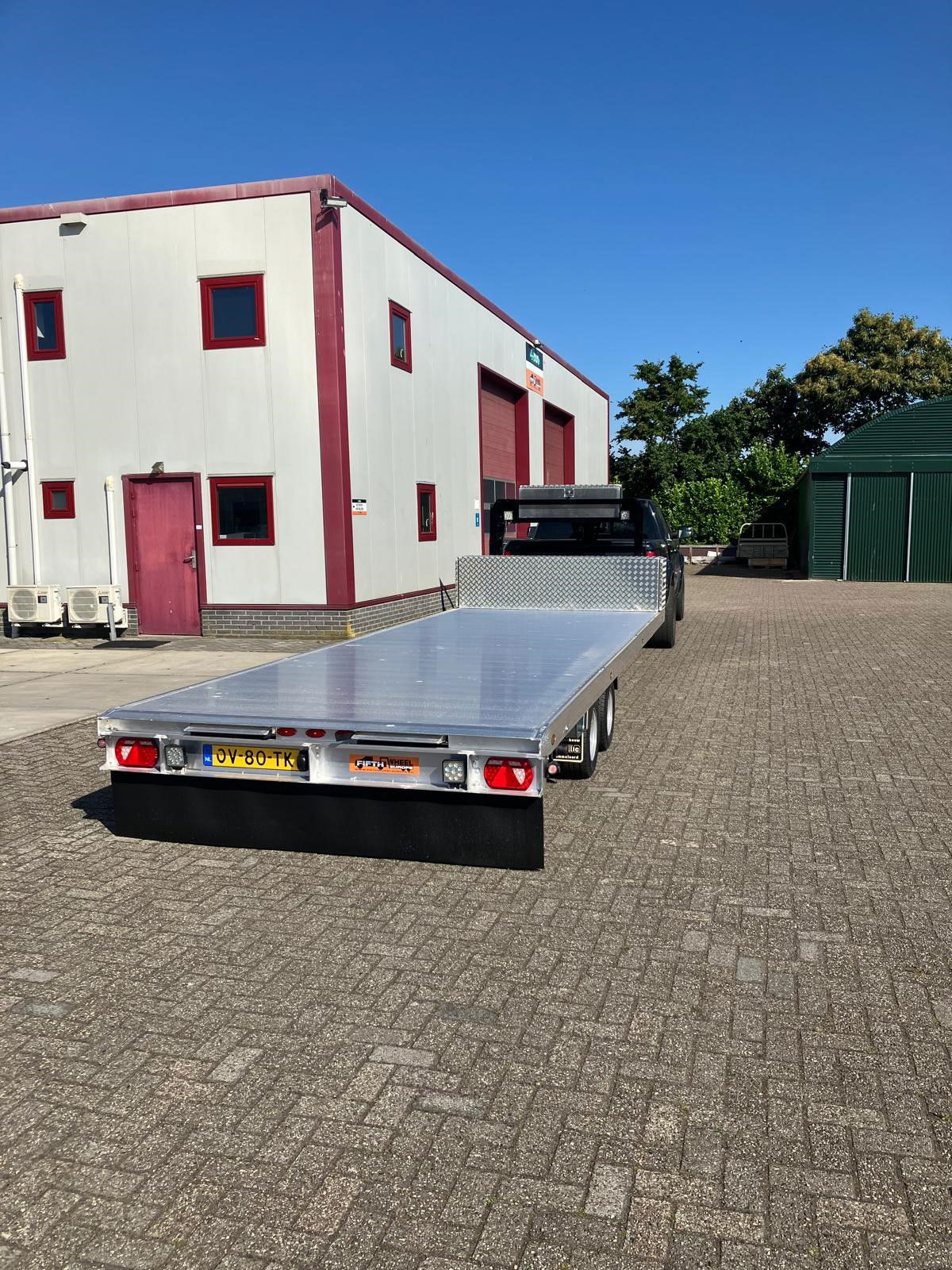

Flatbed trailer BEVF52

Flatbed Trailer BEVF52

Standard Equipment:

• Fully galvanized laser-cut frame (FEM calculated)
• Loading floor height is 67cm
• Dimensions: 5060x2200mm
• Plywood floor of 18mm (birch) with sufficient cross beams
• Two axles of 1,800kg (downgraded to 1750kg each)
• Adjustable coupling height (650 – 750 mm)
• Tires: 195/50R13C
• Spare wheel
• Front support leg
• Tie-down hooks
• Without sideboards
• Ball coupling
• Front and side LED lighting
• Reverse light
• E35 EG-approved Electric braking system
• Gross total weight of 5,300kg
• Empty weight of approximately 1,000kg
• Tie-down rings in the side wall (2 x 4)
• Equipped with license plate

Customization Options:

• Different tires & dimensions
• Construction (closed or semi-open)
• Heavy closures and underboard hinges
• See also options

Options:

• Option sideboards 30cm aluminum
• Option tie-down rings in the side beam (price per piece)
• Option extendable support legs, rear (2x)
• Option loading platform on the neck, 2mx2m
• Option toolbox on the roadside LxWxH
• Option head rack at the height of the neck
• Option aluminum ramps under the loading floor (3 tons)
• Option floor: plastic, aluminum treadplate, or steel plate
• Option tarpaulin in black or white
• Option rear lamp protection
